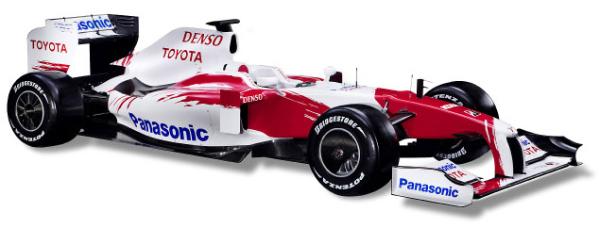

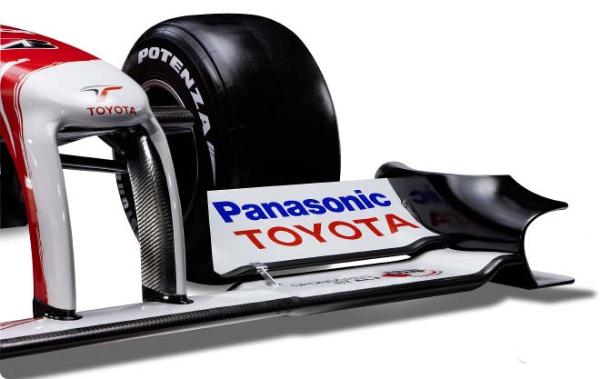

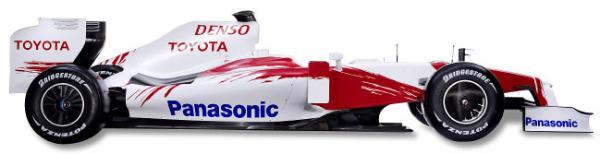

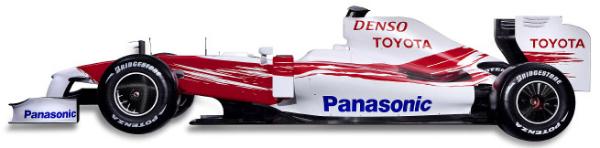

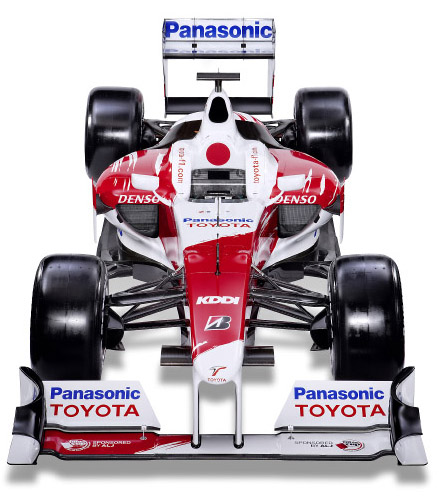

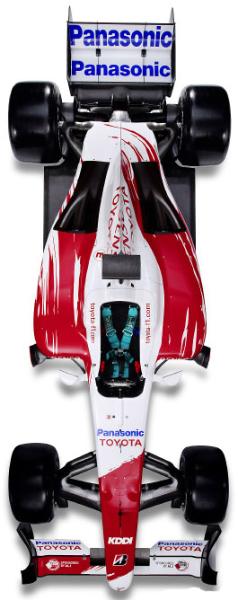

2009 Toyota TF109 Launch Photos
Contact             About              Site Map            Privacy                          Copyright © 2009 IndySpeedway.com All Rights Reserved

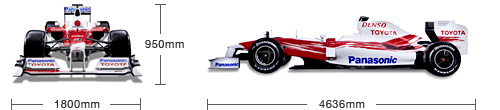

TF109 Specifications

Monocoque      Moulded carbon fibre and honeycomb construction.
Fuel tank        ATL safety cell
Suspension      Carbon fibre double wishbone arrangement, with carbon fibre trackrod and pushrod.
Dampers          Penske
Wheels            BBS forged magnesium
Tires               Bridgestone Potenza
Brakes            Toyota/Brembo callipers, Brembo master cylinders, Hitco material (carbon/carbon)
Steering         Toyota power-assisted steering. Toyota carbon fibre steering wheel with Toyota / Magneti Marelli instruments
Driver's seat  Carbon fibre Restraints Takata
HANS device  Hubbard-Downing
Electronics      Toyota, Magneti Marelli plus McLaren Electronic Systems ECU (as required by FIA rules)
Transmission    7-speed unit plus reverse

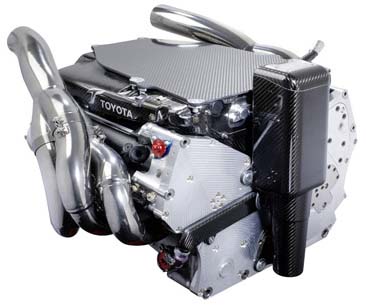

RVX-09 Technical Specifications

Cylinders                 8
Capacity                   2,398cc
Horsepower            Approximately 740bhp
Revolutions              Maximum 18,000rpm (as required by FIA rules)
Valve actuation         Pneumatic
Throttle actuation   Hydraulic
Spark Plugs              DENSO
Fuel                          Esso
Lubricants                Esso
